| The combination of our many years of experience as manufactures and the advice and needs of highly discerning customers, have produced a unique range of frame clamping machines, functional and reliable through the years: the Opera range.
Made from top-quality materials and accessories to provide the very best performance with very little maintenance and what is even more important … like all great works, made to last … |
|
Optimise and best reduction in production cycle times, maximum operation comfort for the end user, maintenance minimum or free for the top excellente quality.
|

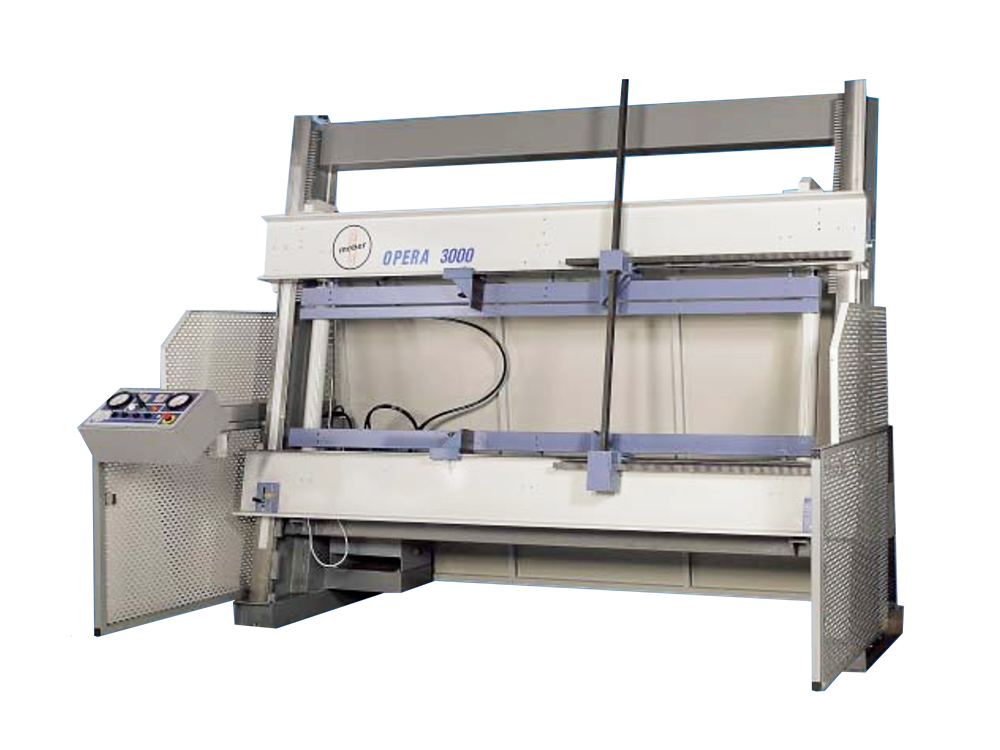

HYDRAULIC FRAME PRESSES OPERA
Description
TECHNICAL FEATURES – SERIE OPERA MA e M
| All commands are to low tension. | |||
| Useful dimensions mm. | 3.000 x h 1.700 | 3.000 x 2.000 | 3.500 x 2.000 |
| Min. dimensions mm. | 350 x 400 | 350 x 400 | 350 x 400 |
| Vertical pistons n. 2 | Ø 45/80 mm. | Ø 45/80 mm. | Ø 45/80 mm. |
| Vertical piston stroke | 900 mm. | 900 mm. | 900 mm. |
| Horizontal pistons n. 2 | Ø 35/55 mm. | Ø 35/55 mm. | Ø 35/55 mm. |
| Horizontal pistons stroke | 1.250 mm. | 1.250 mm. | 1.250 mm. |
| Motor power HP/KW | 3/2,2 | 3/2,2 | 3/2,2 |
| Net weight Kg. | 1.950 | 2.000 | 2.150 |
| Vertical thrust adjustable up to | 13.000 Kg. | 13.000 Kg. | 15.000 Kg. |
| Horizontal thrust adjustable up to | 4.000 Kg. | 4.000 Kg. | 4.000 Kg. |
| Height of lower beam from ground mm. | 540/770/1000 mm. | 540/770/1000 mm. | 540/770/1000 mm. |
